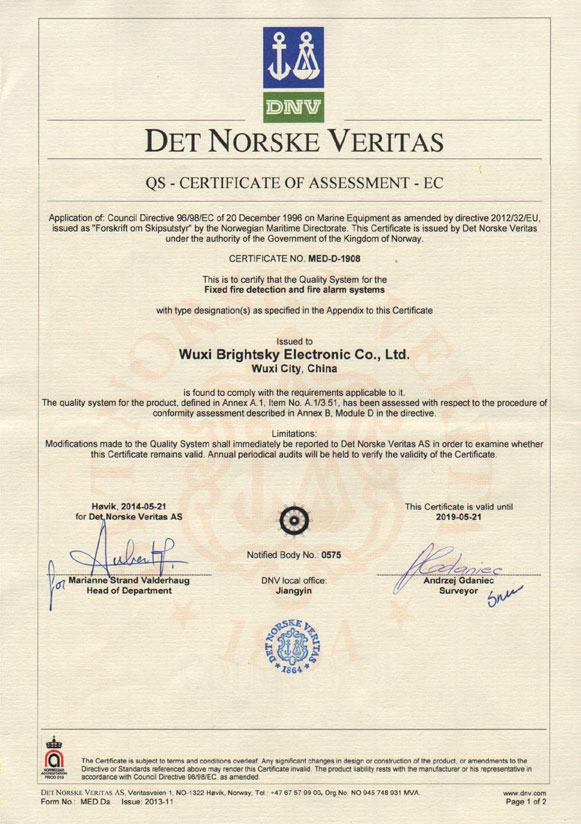

Certificate
Installation case

Simplify design, save space and reduce costs for you

JB-QBC-BS10 Automatic marine fire alarm & Water-based cabin fire extinguishing control system

BS10 Automatic Fire alarm controller

Integrated entire ship cabin fire alarm and water mist fire extinguishing control functions in one

The main performance index

Meets the requirements of MSC.1/Circ.1387 in Chapter 9 of the FSS Code. It can be used for fixed local water-based fire extinguishing systems in Category A machinery spaces.

Wiring system

Two-wire ring-distributed, non-polarity

Capacity

127 × 8(Loop) = 1016 Maximum addressing capacity

Transmission distance

≤ 1500 meters

Quadratic Programming

In addition to display the alarm address, the alarm point can display the alarm location described by textual

APOLLO bus device 126*4 circuit

=504 Maximum addressing capacity

LCD screen with multi-information on the same screen

Chinese and English bilingual conversion

Two kinds of installation options

Wall mounted, Flush mounted

BS10 Fire Detector

Intelligent algorithm to determine accurate and reliable fire

Address card indicator: convenient for inspectors to directly obtain the detector's address number

BS10-system fire detectors adopt digital value transmission and floating threshold value processing technology, and their basic difference from normal fire detectors is that they have no fixed alarm threshold, i.e. when the environment changes or a detector is contaminated by the environment, its internal intelligent algorithm will automatically identify and adjust the alarm threshold to adapt to the new environment and condition, so the function of threshold drift compensation enables every fire detector to has a sensitivity relatively constant to external environment.

BS10 Infrared Flame Detector

Dual-band Infrared Ray + Dynamic Flash Frequency Identification
Effectively prevent false alarm caused by non-combustion

Detecting a fan-shaped conical area with a 120-degree field of view, the centerline distance can reach 25 meters.

BSKY+APOLLO, Model of Sino-foreign Cooperation

The BS10 controller has been rigorously tested by Apollo in the United Kingdom and is authorized to mate with Apollo‘s XP95 and Discovery series of fire detectors.

◆ System features

Meets both requirements of Europe MED on fire alarm and MSC.1/Circ.1387 in Chapter 9 of the FSS Code. It can be used for fixed local water-based fire extinguishing systems in Category A machinery spaces
Maximum addressing capacity：127 × 8(Loop) = 1016
Intelligence algorithms are used in controller and detectors to reduce the mis-alarm event
Selective detector isolation function for easy system maintenance
Address card indicator, convenient for inspectors to directly obtain the detector's address number
The monitored location can be directly described by textual alternative address number display, which is more intuitive
LCD screen with multi-information on the same screen, Chinese, English bilingual conversion
Two kinds of installation options, wall mounted and flush mounted

◆ Technical specifications

JB-QBC-BS10 Fire alarm controller
Main power supply	AC 110/220V (+10%~-15%) ，50HZ/60HZ
Emergency power supply	AC 110/220V (+10%~-15%) ，50HZ/60HZ
Backup DC power for ships	DC 24V（+30%~-25%）
Internal battery	DC 24V，2.2AH
Power consumption	Monitoring status: ≤10W， Alarm status: ≤12W
Standard	EN-54/2，4
Number of loop boards	Two at most
Capacity of each loop board	4 circular loops with 128 alarm points each
Alarm time of manual alarm	≤5s
Alarm time of detecto	≤10s
Loop max. Communication distance	≤1500m
Communication distance between detector and	≤1500m
Way of wiring	BS10-series alarm point – 2 wiring system, non--polar BS10-series module – 4 wiring system
Fire protection zone	Max. 16 Fire protection zone,they can be set to any separate loop
Output of the device	Dry contact output,contact capacity 1A,DC30V: — Fire output 6 — Fire delay output 1 — PA output 1 — Fault output 4 — Power fault output 2 — System fault output 2 Power supply to the output,DC24V,max. current 1A: — Fire delay output 1 — Door hold output 1
Alarm input from other system	2 sets of passive input contacts
Way of installation	wall type / flush mounting type
Fire alarm history records	Max 999 instances
Other history records	Max 999 instances
Working temperature	5℃~55℃
Relative humidity (Non-condensing)	Max.95%
Installation dimensions	525×146×515（L×W×H）mm³
Weight	22Kg
Degrees of protection	IP44

JB-QBC-BS10 Fire alarm controller
Main power supply	AC 110/220V (+10%~-15%) ，50HZ/60HZ
Emergency power supply	AC 110/220V (+10%~-15%) ，50HZ/60HZ
Backup DC power for ships	DC 24V（+30%~-25%）
Internal battery	DC 24V，2.2AH
Power consumption	Monitoring status: ≤10W， Alarm status: ≤12W
Standard	EN-54/2，4
Number of loop boards	Two at most
Capacity of each loop board	4 circular loops with 128 alarm points each
Alarm time of manual alarm	≤5s
Alarm time of detecto	≤10s
Loop max. Communication distance	≤1500m
Communication distance between detector and	≤1500m
Way of wiring	BS10-series alarm point – 2 wiring system, non--polar BS10-series module – 4 wiring system
Fire protection zone	Max. 16 Fire protection zone,they can be set to any separate loop
Output of the device	Dry contact output,contact capacity 1A,DC30V: — Fire output 6 — Fire delay output 1 — PA output 1 — Fault output 4 — Power fault output 2 — System fault output 2 Power supply to the output,DC24V,max. current 1A: — Fire delay output 1 — Door hold output 1
Alarm input from other system	2 sets of passive input contacts
Way of installation	wall type / flush mounting type
Fire alarm history records	Max 999 instances
Other history records	Max 999 instances
Working temperature	5℃~55℃
Relative humidity (Non-condensing)	Max.95%
Installation dimensions	525×146×515（L×W×H）mm³
Weight	22Kg
Degrees of protection	IP44

JB-QBC-BS10R Fire indication panel
Main power supply	DC 24V（±10%）
Power consumption	Monitoring status: ≤ 1.5W; Alarm status: ≤ 2.4W
Communication distance between detector and	≤1500M
Working temperature	5℃~55℃
Relative humidity (Non-condensing)	Max.95%
Way of installation	wall type / flush mounting type
Installation dimensions	245×102×176（L×W×H）mm³
Weight	22Kg
Degrees of protection	IP44

JB-QBC-BS10R Fire indication panel
Main power supply	DC 24V（±10%）
Power consumption	Monitoring status: ≤ 1.5W; Alarm status: ≤ 2.4W
Communication distance between detector and	≤1500M
Working temperature	5℃~55℃
Relative humidity (Non-condensing)	Max.95%
Way of installation	wall type / flush mounting type
Installation dimensions	245×102×176（L×W×H）mm³
Weight	22Kg
Degrees of protection	IP44


Type and name	JTY-GD-BS10 Point-type photoelectric smoke detector	JTW-ZD-BS10 Point-type heat fire detector	J-SAP-BS10 Manual fire alarm button	J-SAP-BS10WP Manual fire alarm button	JTG-IR-BS10 Point-type infrared flame detector
Working voltage	DC 18~26V	DC 18~26V	DC 18~26V	DC 18~26V	DC 18~30V
Static power consumption	≤0.35W	≤0.35W	≤0.35W	≤0.35W	≤0.35W
Alarm power consumption	≤1.5mA	≤1.5mA	≤1.5mA	≤1.5mA	≤1.5mA
Working temperature	-25℃~70℃	-25℃~70℃	-25℃~70℃	-25℃~70℃	-25℃~70℃
Relative humidity (Non-condensing)	≤95%	≤95%	≤95%	≤95%	≤95%
Weight	0.26Kg	0.26Kg	0.1Kg	0.3Kg	1.9Kg
Degrees of protection	IP44	IP44	IP22	IP22	IP22

Type and name	JTY-GD-BS10 Point-type photoelectric smoke detector
Working voltage	DC 18~26V
Static power consumption	≤0.35W
Alarm power consumption	≤1.5mA
Working temperature	-25℃~70℃
Relative humidity (Non-condensing)	≤95%
Weight	0.26Kg
Degrees of protection	IP44

Type and name	JTW-ZD-BS10 Point-type heat fire detector
Working voltage	DC 18~26V
Static power consumption	≤0.35W
Alarm power consumption	≤1.5mA
Working temperature	-25℃~70℃
Relative humidity (Non-condensing)	≤95%
Weight	0.26Kg
Degrees of protection	IP44

Type and name	J-SAP-BS10 Manual fire alarm button
Working voltage	DC 18~26V
Static power consumption	≤0.35W
Alarm power consumption	≤1.5mA
Working temperature	-25℃~70℃
Relative humidity (Non-condensing)	≤95%
Weight	0.1Kg
Degrees of protection	IP22

Type and name	J-SAP-BS10WP Manual fire alarm button
Working voltage	DC 18~26V
Static power consumption	≤0.35W
Alarm power consumption	≤1.5mA
Working temperature	-25℃~70℃
Relative humidity (Non-condensing)	≤95%
Weight	0.3Kg
Degrees of protection	IP22

Type and name	JTG-IR-BS10 Point-type infrared flame detector
Working voltage	DC 18~30V
Static power consumption	≤0.35W
Alarm power consumption	≤1.5mA
Working temperature	-25℃~70℃
Relative humidity (Non-condensing)	≤95%
Weight	1.9Kg
Degrees of protection	IP22


Type and name	LIC-BS10 Line isolator	DI-BS10 Cabin isolation unit	IMC-BS10 Input module	RMC-BS10 Input / Output module	SMC-BS10 Audible and visual fire alarm
Working voltage	DC 18~26V	DC 18~26V	DC 18~26V	DC 18~26V	DC 18~26V
Loop Static power consumption	≤0.78mA	≤0.38mA	≤0.5mA	≤0.38mA	≤1mA
Loop Alarm power consumption	≤4.6mA	≤1.5mA	≤1.5mA	≤2.6mA	≤3mA
24VStatic power consumption	——	≤1.2mA	≤18mA	——	≤18mA
24VAlarm power consumption	——	≤10mA	≤45mA	——	≤45mA
Working temperature	-25℃~70℃	-25℃~70℃	-25℃~70℃	-25℃~70℃	-25℃~70℃
Relative humidity (Non-condensing)	≤95%	≤95%	≤95%	≤95%	≤95%
Weight	0.2Kg	0.7Kg	0.7Kg	0.7Kg	0.7Kg
Degrees of protection	IP44	IP44	IP22	IP44	IP44

Type and name	LIC-BS10 Line isolator
Working voltage	DC 18~26V
Loop Static power consumption	≤0.78mA
Loop Alarm power consumption	≤4.6mA
24VStatic power consumption	——
24VAlarm power consumption	——
Working temperature	-25℃~70℃
Relative humidity (Non-condensing)	≤95%
Weight	0.2Kg
Degrees of protection	IP44

Type and name	DI-BS10 Cabin isolation unit
Working voltage	DC 18~26V
Loop Static power consumption	≤0.38mA
Loop Alarm power consumption	≤1.5mA
24VStatic power consumption	≤1.2mA
24VAlarm power consumption	≤10mA
Working temperature	-25℃~70℃
Relative humidity (Non-condensing)	≤95%
Weight	0.7Kg
Degrees of protection	IP44

Type and name	IMC-BS10 Input module
Working voltage	DC 18~26V
Loop Static power consumption	≤0.5mA
Loop Alarm power consumption	≤1.5mA
24VStatic power consumption	≤18mA
24VAlarm power consumption	≤45mA
Working temperature	-25℃~70℃
Relative humidity (Non-condensing)	≤95%
Weight	0.7Kg
Degrees of protection	IP22

Type and name	RMC-BS10 Input / Output module
Working voltage	DC 18~26V
Loop Static power consumption	≤0.38mA
Loop Alarm power consumption	≤2.6mA
24VStatic power consumption	——
24VAlarm power consumption	——
Working temperature	-25℃~70℃
Relative humidity (Non-condensing)	≤95%
Weight	0.7Kg
Degrees of protection	IP44

Type and name	SMC-BS10 Audible and visual fire alarm
Working voltage	DC 18~26V
Loop Static power consumption	≤1mA
Loop Alarm power consumption	≤3mA
24VStatic power consumption	≤18mA
24VAlarm power consumption	≤45mA
Working temperature	-25℃~70℃
Relative humidity (Non-condensing)	≤95%
Weight	0.7Kg
Degrees of protection	IP44

◆ Other Accessories


Type and name	DB-BS10 Detector base	DBF-BS10 Detector water-proof base	LIC-BS10 Detector isolating base	SJX Junction box for manual call point	AD-BS10 Address programme
Function description	Used with BS10 series smoke or heat detector together.	Used with BS10 series smoke or heat detector and DB-BS10 detector base, in order to enhance their IP degree.	Used with BS10 series smoke or heat detector, in order to isolate the wires if they are short.	This junction box is used to fix the manual call point outside.	Used to set the BS10 series bus-device's address and test their functions.
Working temperature	-25℃~70℃	-25℃~70℃	-25℃~70℃	-25℃~70℃	-25℃~70℃
Dimensions	Φ103X14 mm	140X128X41 mm	Φ105X28 mm	87X87X32 mm	180X109X39 mm
Weight	0.1Kg	0.2Kg	0.1Kg	0.1Kg	0.4Kg

Type and name	DB-BS10 Detector base
Function description	Used with BS10 series smoke or heat detector together.
Working temperature	-25℃~70℃
Dimensions	Φ103X14 mm
Weight	0.1Kg

Type and name	DBF-BS10 Detector water-proof base
Function description	Used with BS10 series smoke or heat detector and DB-BS10 detector base, in order to enhance their IP degree.
Working temperature	-25℃~70℃
Dimensions	140X128X41 mm
Weight	0.2Kg

Type and name	LIC-BS10 Detector isolating base
Function description	Used with BS10 series smoke or heat detector, in order to isolate the wires if they are short.
Working temperature	-25℃~70℃
Dimensions	Φ105X28 mm
Weight	0.1Kg

Type and name	SJX Junction box for manual call point
Function description	This junction box is used to fix the manual call point outside.
Working temperature	-25℃~70℃
Dimensions	87X87X32 mm
Weight	0.1Kg

Type and name	AD-BS10 Address programme
Function description	Used to set the BS10 series bus-device's address and test their functions.
Working temperature	-25℃~70℃
Dimensions	180X109X39 mm
Weight	0.4Kg
