Marine high-pressure carbon dioxide fire extinguishing system

Overview
schematic diagram
system composition
Technical Parameter
System characteristics

Mature and reliable fixed gas fire extinguishing system

CDE-2 Marine High Pressure Carbon Dioxide Fire Extinguishing System

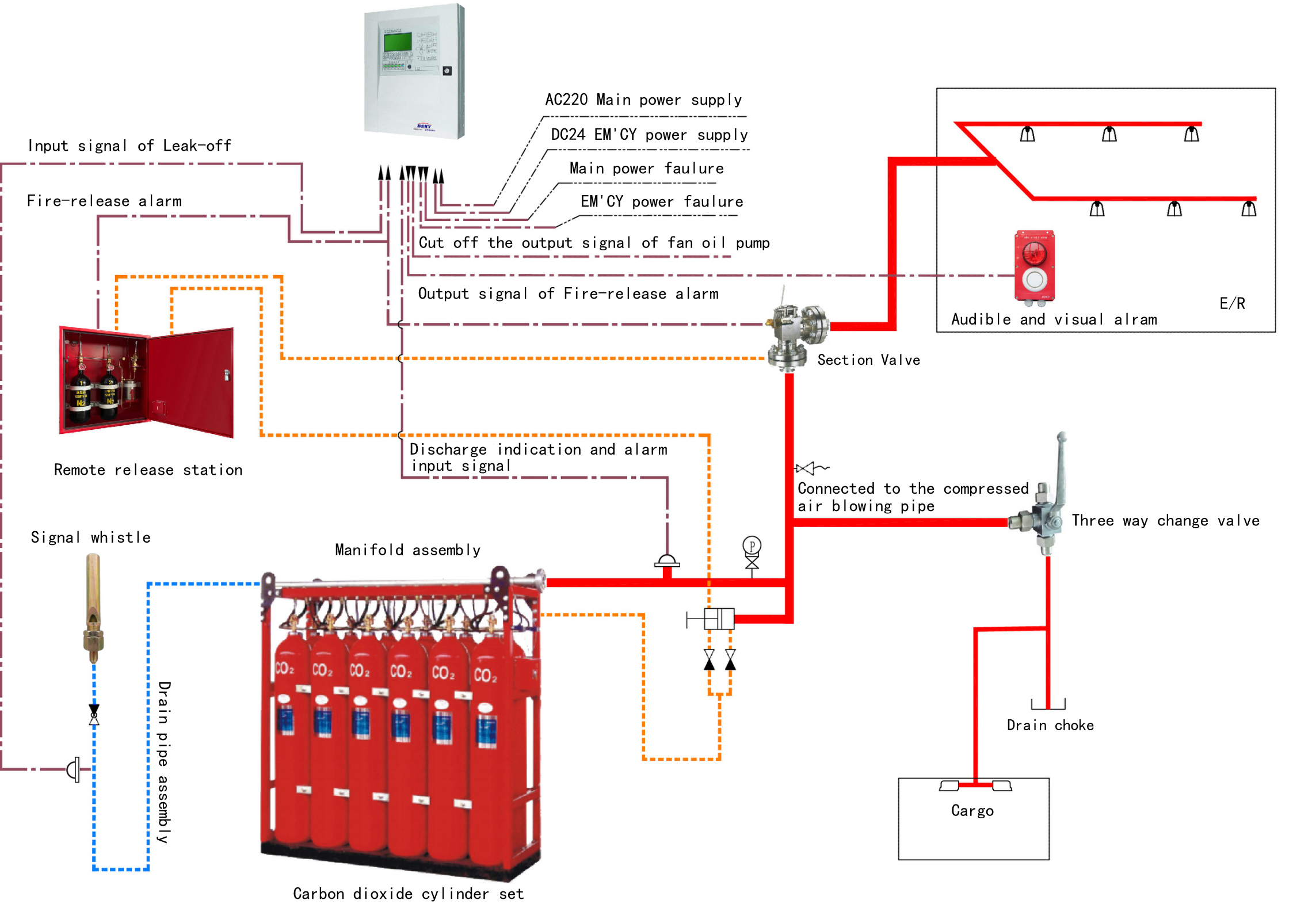

◆ schematic diagram

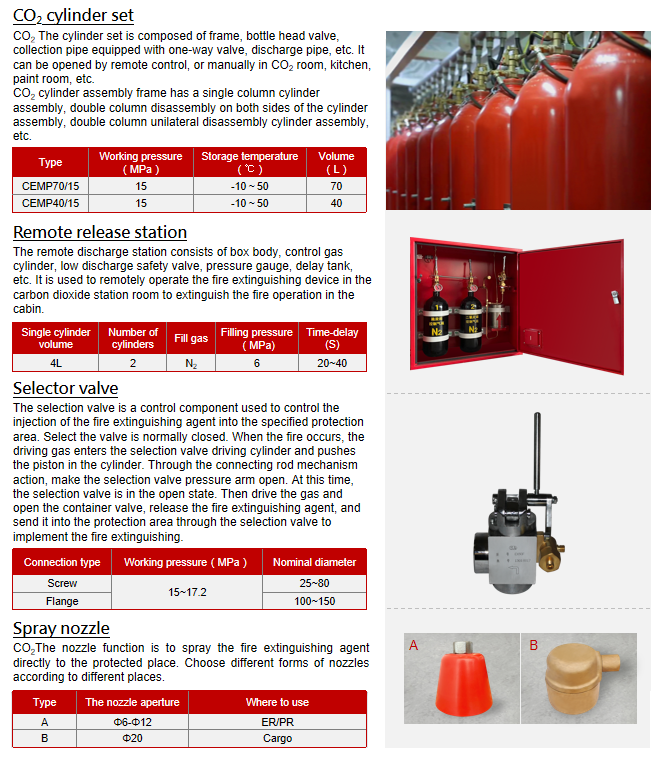

◆ system composition

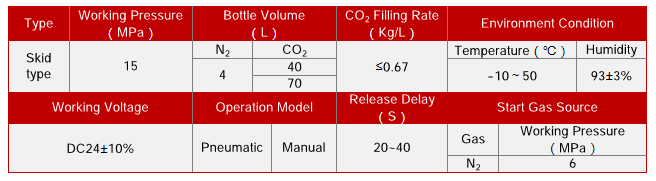

◆ Technical Parameter

型式	工作压力（MPa）	储瓶容积（L）			CO₂充装（Kg/L）	环境条件
固定式	15	N₂	CO₂		≤0.67	环境温度（℃）		相对湿度
		4	40			-10～50		93±3%
			70
工作电压		操作方式			释放延时（S）	启动电源
DC24±3		气动遥控		手动	20~40	气体	工作压力（MPa）
						N₂	6

BSKY CO₂Meet the requirements of classification societies such as BV, NK, ABS, LR, RS, etc.

The type approval and certification of marine high-pressure carbon dioxide fire extinguishing systems comply with the requirements of MSC. 206 (81) and MSC. 339 (91).

◆ System characteristics

Flexible operation: available in three modes: automatic, manual, and mechanical emergency.

Safety and environmental protection: CO2 fire extinguishing agent will not cause environmental pollution.

Widely applicable: can extinguish various types of fires.
