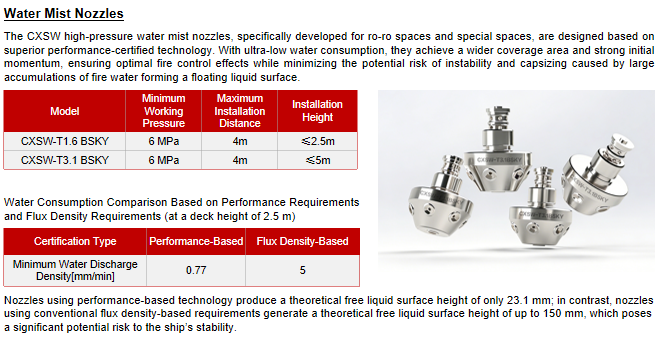

Low Water Consumption: Adopts high-efficiency flame suppression technology with ultra-fine droplet size, significantly reducing water consumption per nozzle to only 12.4–24 L/min.

High-Efficiency Blocking: Rapidly isolates the burning area, precisely protects vehicles around the fire source, and effectively restrains flame spread.

Sustained Fire Control: Adapted to the combustion characteristics of new energy vehicles, it provides longer-lasting fire suppression capability with ultra-low water consumption.

Deep Cooling: Continuously cools burning vehicles, targets the core of battery thermal runaway, and fundamentally suppresses secondary re-ignition.

Re-ignition Response: Supports repeated activation and discharge mechanisms, calmly coping with repeated fires in extreme scenarios.

Dust Reduction and Smoke Ventilation: Ultra-fine water mist particles efficiently capture suspended dust. Combined with evaporative heat absorption and directional spray disturbance, it quickly channels smoke paths and improves visibility at the fire scene.

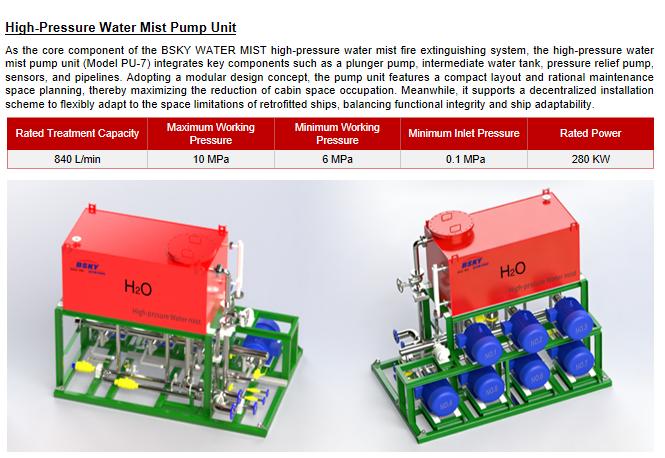

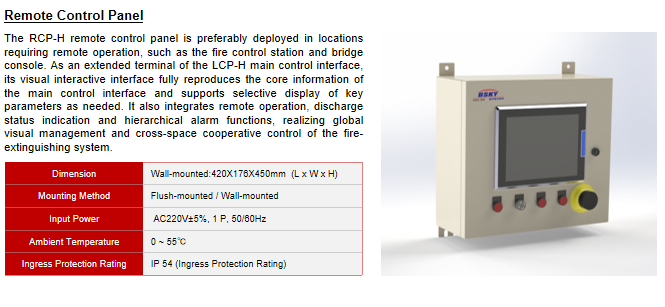

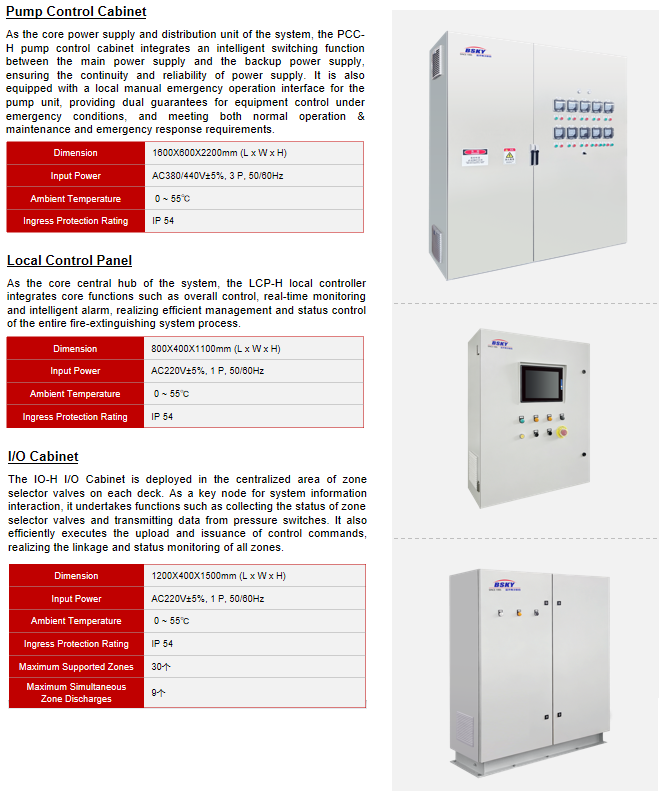

The BSKY WATER MIST system is designated as model CXSW-RSH. It mainly consists of a pump unit (PU-7), pump control cabinet, local controller, I/O cabinet, remote control panel, zone control valve bank, water mist nozzles and auxiliary equipment.

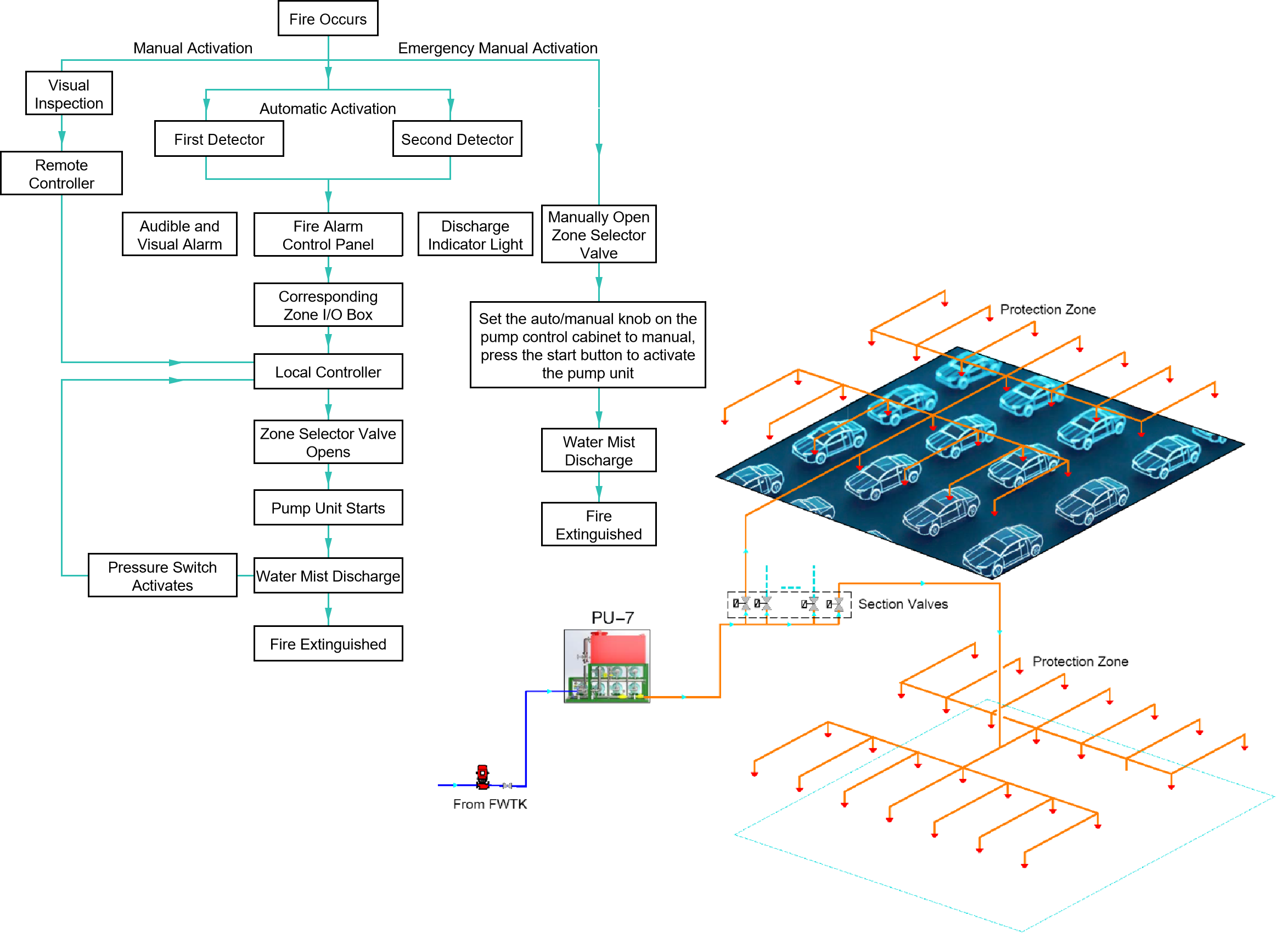

The CXSW-RSH supports automatic, manual and emergency activation:Automatic activation is triggered by signals from the fire detection system.Manual activation can be initiated via one-touch operation on the remote touchscreen.In the event of control system failure, manual emergency activation is available.A commissioning mode is integrated for initial parameter configuration before first use and subsequent maintenance after system installation.

BSKY WATER MIST meets the single-ship certification requirements of classification societies including BV, ABS and RS. The type approval and certification of the fixed high-pressure water-based fire-extinguishing device complies with the requirements of MSC.1-Circ.1430-Rev.3.
