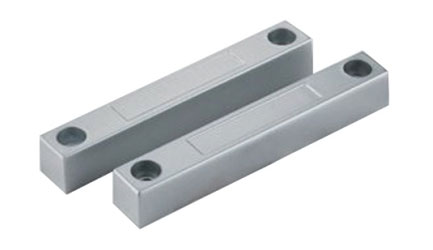

 Magnetic door switch
Magnetic door switch
Suitable for use with fire door monitoring system
◆ Product features
  • The door magnetic switch is mainly composed of a switch and a magnet. The switch part is a magnetic reed switch connected by a lead wire and packaged. The magnet part is enclosed in a plastic or alloy shell by a magnet with a corresponding magnetic field strength. When the two are separated or approached to a certain distance, the switch is caused to open or close to judge the open/close state of the fire door.
◆ Technical specification
Model BS-920 BS-910
Dimensions 48×19×10mm 106×16×15mm
Shell material Aluminium alloy Aluminium alloy
Working environment temperature -40℃～80℃ -40℃～80℃
Relative humidity ≤95%（40℃） ≤95%（40℃）
Shell color Silver Silver
Sensing distance 25±5mm 25±5mm
Feedback signal Passive switch signal Passive switch signal
