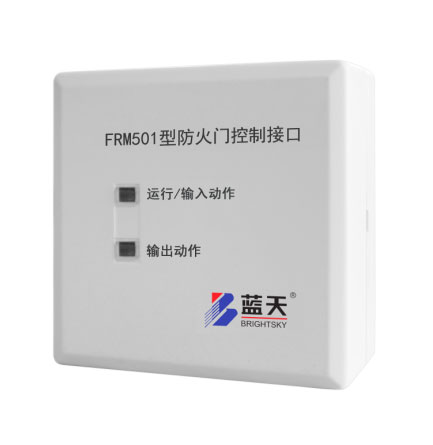

FRM501 Fire door control interface

Address-coded modules designed for various environments

◆ Product features

Low power consumption, bus system (alarm bus, power bus) has no polarity connection, and can regard as the same address code device to connect to the alarm bus, which is convenient for construction and flexible in use.
It can be used as the linkage control execution component of the controller and the controlled device, and can also receive the feedback signal of the controlled device after the action.
There are two fire door control interfaces, which can monitor two normally open fire doors, with functions of disconnection, short circuit fault monitoring for built-in external load.

◆ Technical specification

Power supply voltage	24VDC
Bus operating voltage	18～26VDC
Monitoring current	Alarm bus (T+ T-) ≤ 300uA Power bus 24VDC ≤6.0mA
Startup current	Alarm bus (T+ T-) ≤ 2.6mA Power bus 24VDC ≤20mA
Wire system	Two alarm buses: T+, T- Two power busses: 24VDC
Load capacity	10mA≤Single output≤200mA
Ambient temperature	-10℃～50℃
Relative humidity	≤95%
Color	White
