JTY-GF-501H Independent Photoelectric Smoke Detector Alarm

Overview
Product Features
Technical specifications
Certificate

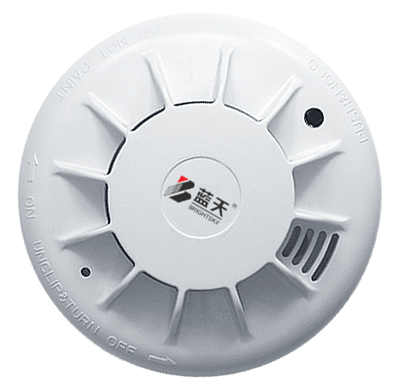

JTY-GF-501H Independent Photoelectric Smoke Detector Alarm

Contains intelligent algorithms, for accurate and reliable fire detection.

◆ Product Features

Internal battery-powered, no external power supply required
Can be used separately, can also be used with the same type of detector network (up to 24 detectors of the same type can be interconnected)
With test button, with self-test function, can detect its own condition
Ultra-low power design with up to one year battery life
With battery low voltage alarm function
With fault, fire output interface, convenient function expansion

◆ Technical specifications

Technical standard	Meets the requirements of NEN-EN14604:2005 and GB 20517-2006
Power supply	Internal 6LR61 DC9V Alkaline Battery
LED	Red, flashes approximately once every 365 seconds during normal operation
Operating Voltage	DC9V
Monitor current	≤34uA
Alarm current	≤100mA
Alarm sound	Distance 3m>80dB
Protection area	60㎡ to 100㎡, The specific parameters should be based on the "Fire Automatic Alarm System Design Specification" (GB 50116-98).
Use environment	Temperature: -10°C～+55°C; Relative humidity ≤95%, no condensation;
Dimensions	Φ120mm, H54mm (including mounting plate)
Shell material and color	ABS White
Weight	256g
Mounting hole distance	50mm～68mm, hole diameter 4.2mm

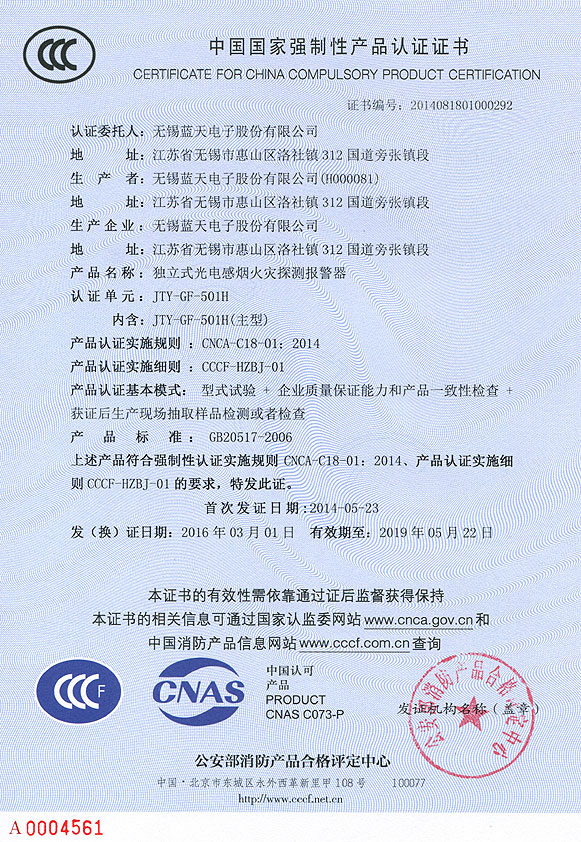

◆ Certificate
